Mineral Processing Systems — Origin Group

PROCESSING

SYSTEMS

Experts in mineral processing solution

Our range of mineral processing machinery continue to pass the test across the globe in some of the most demanding conditions. From crushers and grinding systems through to screens and conveyors, our machinery is all built with strength and durability in mind.

Our suppliers continue to invest in independent R&D year on year to ensure that their products remain industry leaders in:

• crushers: jaw, impact, cone and gyratory
• sand making systems
• mills: roller, vertical and ultrafine
• screens
• feeders
• rotary driers, and
• conveying systems.

We have over 10 years experience supplying large mineral processing systems and many more years at the coal face operationally.

We stock a number of consumable parts and have fast reliable access to anything your system requires.

For all other inquiries contact us today.

Processing systems background_blue.jpg

Jaw Crusher
Impact Crusher
Hammer Mill
Sand Mill

Belt Conveyors
Augers
Bucket Elevators

Jaw Crusher

C6X Jaw CrusherPrimary Crushing

The C6X Series is the most technically advanced and robust Jaw Crusher produced in Asia. It has been developed by SBM over the last 20 years and over 18000 units are operating accross 36 countries.

80 to 1500 TPH
Input size up to 1280mm

PEW Jaw CrusherPrimary Crushing

The PEW Series Jaw Crushers are the industry standard primary crushing option for limestone, granite, basalt, quartz, pebble and copper. They are reliable, robust and easily maintained.

12 to 650 TPH
Input size up to 930mm

PE Jaw CrusherPrimary Crushing

The PE Series Jaw Crushers are the most traditional Jaw in our offering. Their operation and reliability has been proven for decades.

45 to 800 TPH
Input size up to 1020mm

Impact Crusher

C15X Impact CrusherPrimary / Secondary Crushing

The C15X Series Impact Crusher boast world leading energy efficiency. Do to much greater precision, the series is capable accross both primary and secondary application. They deliver consitently and reliable and are considerably more energy efficient than other options in this class.

250-2000 TPH
Input size up to 1300mm

PFW Impact CrusherPrimary Crushing

The PFW Series is designed for lower tonnage sites and offers reliability, simple ajustment and easy access for maintenence.

70 to 400 TPH
Input size up to 700mm

PF Impact CrusherPrimary Crushing

The PF Series is a basic low cost option that is suitable for many lower tonnage processes. While the design is relitively simple, the series is built extremely strongly and still provides exceptional reliability and good access for inspection and wear part replacement.

50 to 220 TPH Input size up to 500mm

Hammer Mill


PCD UltraFine Hammer Mill Tertiary Crushing

The PCD Series is a well belt medium to large volume hammer mill. Sieve plates at discharge insure excellent fines production first pass. These units have been operating in NZ in Limestone for many years.

20 to 310 TPH
Input size up to 200mm

ZHM Hammer CrusherTertiary Crushing

One of the most popular and widely used hammer crushers on the planet. The ZHM are reliable, easy to service and extremly well built.

8 to 80 TPH
Input size up to 100mm

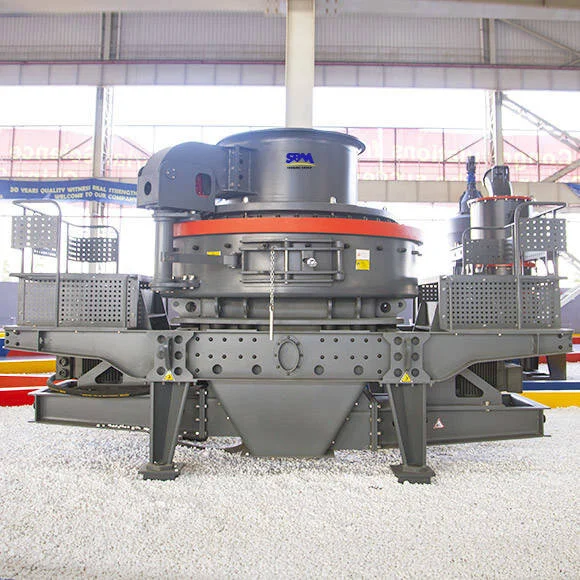

Sand Maker

VS16X Sand MakerReshaping / Sand

The VS16X Sand Maker is the product of over 20 years of R&M and manufacturing. It is a customer lead design that solves many issues that traditional sand making and reshaping systems create.

100 to 500 TPH
Input size up to 60mm

VS15X Sand MakerReshaping / Sand

The VS15X is a modren take on a traditional vertical shaft sand maker. Its adjustablity, accuracy and hyraulic access for maintenence make this a great option for many sites.

70 to 640 TPH
Input size up to 50mm

VSI Sand MakerFinishing

The VSI is a traditional Vertical Shaft Sand Maker or aggregate shaper. They are very popular world wide and offer reliable performance and good value.

60 to 450 TPH
Input size up to 50mm

Screening

S5X Vibrating ScreenSizing

The S5X Series is a brilliantly engineered and well built screen that is being proven effective every day in NZ. Options include from 1 to 4 decks, full stands and discharge chutes.

43 to 1800 TPH
Max Feed 200mm

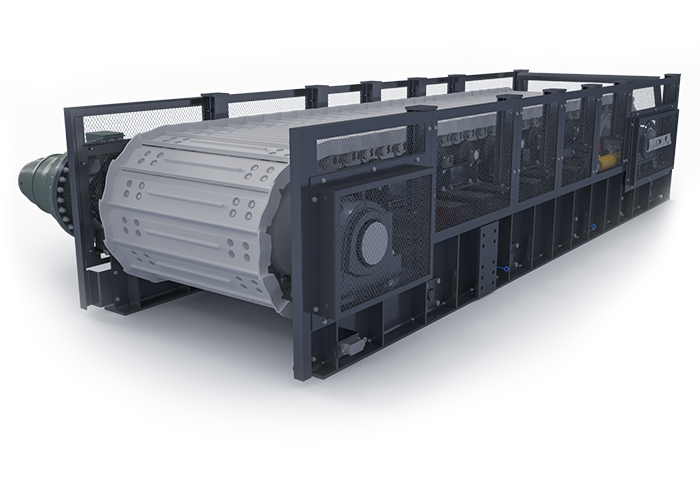

Feeding

Vibrating FeederFeeding

Various options available across four different product lines. From lighter silo feed vibrators to extremely robust heavy duty models with 4.5G of vibration under 80m3 of load.

.5 to 1500 TPH
Input size up to 1500mm

Belt Conveyors

b6x-belt- conveyor.jpg

Belt ConveyorsTransfer

Various options available for custom length and width belt conveyors. Extremely well belt and options can include side mounted walkways, service platforms, full covers, gaurding and stands.

500 to 1200mm width
Custom legth

Augers

Sicoma AugersTransfer

Sicoma Augers are the perfect solution for conveying a number of products, including very fine powders. Options are available for horizontal, inline and vertical applications.

.5 to 1000 TPH

Bucket Elevators

Bucket ElevatorsTransfer

We can supply a wide range of styles of bucket elevators to suit various applications. Specialized applications, such as corrosive products can be accomodated for.

.5 to 250 TPH
